Outbox Pattern in .NET

The background

You finish an order. Your service writes the row to the database. Then it publishes an OrderPlaced event to RabbitMQ so the warehouse, billing and email services can react.

What happens if the database commit succeeds but the broker is down? Or the broker accepts the message but your database transaction rolls back?

Welcome to the dual-write problem - the silent killer of "eventually consistent" systems. You either lose business data, lose events, or end up with two systems that disagree forever.

The Outbox Pattern is the standard, battle-tested fix. Instead of writing to the database and publishing to the broker, you only write to the database - including the message itself - in a single ACID transaction. A separate worker reads the saved messages and publishes them later, with retries, until the broker confirms.

In this issue I'll show you a clean, production-grade outbox in .NET 10 with EF Core and PostgreSQL, no MassTransit, no NServiceBus - just enough code to understand exactly what's happening and own it in your codebase.

What is the Outbox Pattern?

The Outbox Pattern stores messages that need to be published in a dedicated table (the outbox) inside the same database your business entities live in. The save and the message persistence happen in one local transaction, so they either both commit or both roll back.

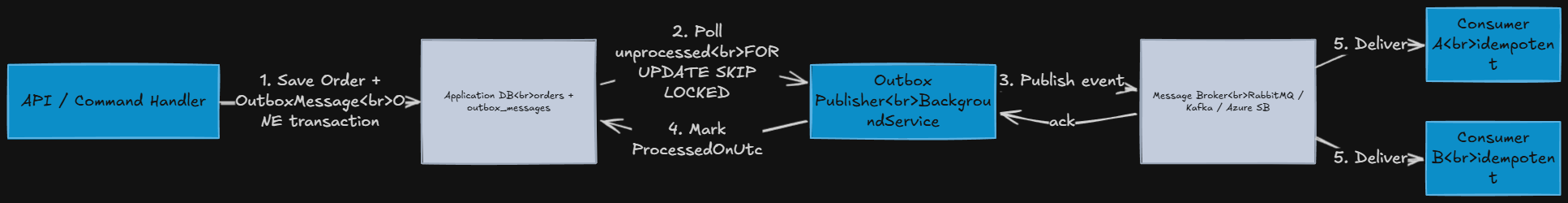

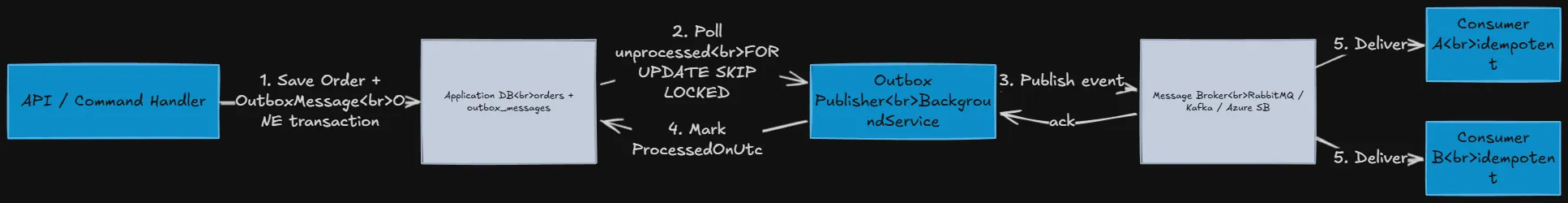

A background process (the outbox publisher) then:

1. Polls the outbox table for unprocessed messages.
2. Publishes them to the message broker (RabbitMQ, Kafka, Azure Service Bus, etc.).
3. Marks them as processed once the broker acknowledges receipt.

The result: at-least-once delivery, no lost events, and full crash recovery. Combined with idempotent consumers, it gives you effectively exactly-once semantics.

Why not just publish directly?

Three failure modes happen all the time in production:

• Broker down, DB up
  • business data is saved, the event is lost forever. Downstream services never learn the order exists.
• DB down, broker up
  • event is published, but the order was never persisted. Downstream systems act on data that doesn't exist.
• Process crash between writes
  • same as above, randomly, in 0.01% of requests, which is exactly the percentage your monitoring will not catch.

You cannot wrap a database transaction and a broker publish in a single distributed transaction without falling into 2PC and its scalability problems. The outbox sidesteps the whole issue by reducing the problem to one transactional write.

Step 1 - Define the OutboxMessage entity

12345678910
public class OutboxMessage{    public Guid Id { get; set; }    public string Type { get; set; } = default!;     // e.g. "OrderPlaced"    public string Content { get; set; } = default!;  // serialized payload (JSON)    public DateTime OccurredOnUtc { get; set; }    public DateTime? ProcessedOnUtc { get; set; }    public string? Error { get; set; }    public int RetryCount { get; set; }}

Map it in your DbContext:

12345678910111213141516
public class AppDbContext : DbContext{    public DbSet<Order> Orders => Set<Order>();    public DbSet<OutboxMessage> OutboxMessages => Set<OutboxMessage>();     protected override void OnModelCreating(ModelBuilder modelBuilder)    {        modelBuilder.Entity<OutboxMessage>(b =>        {            b.ToTable("outbox_messages");            b.HasKey(x => x.Id);            b.Property(x => x.Content).HasColumnType("jsonb");            b.HasIndex(x => x.ProcessedOnUtc);        });    }}

The index on ProcessedOnUtc is critical - the publisher will scan for NULL rows hundreds of times per minute.

Step 2 - Save the business data and the message together

The whole point of the pattern is one transaction. The simplest way to enforce that is an EF Core SaveChanges interceptor that converts domain events into outbox rows just before commit.

1234567891011121314151617181920212223242526272829303132
public class OutboxInterceptor : SaveChangesInterceptor{    public override ValueTask<InterceptionResult<int>> SavingChangesAsync(        DbContextEventData eventData,        InterceptionResult<int> result,        CancellationToken ct = default)    {        var ctx = eventData.Context;        if (ctx is null) return base.SavingChangesAsync(eventData, result, ct);         var entries = ctx.ChangeTracker            .Entries<IHasDomainEvents>()            .Where(e => e.Entity.DomainEvents.Count != 0)            .ToList();         var messages = entries.SelectMany(e =>        {            var events = e.Entity.DomainEvents.ToArray();            e.Entity.ClearDomainEvents();            return events.Select(domainEvent => new OutboxMessage            {                Id = Guid.NewGuid(),                OccurredOnUtc = DateTime.UtcNow,                Type = domainEvent.GetType().FullName!,                Content = JsonSerializer.Serialize(domainEvent, domainEvent.GetType())            });        });         ctx.Set<OutboxMessage>().AddRange(messages);        return base.SavingChangesAsync(eventData, result, ct);    }}

Register it:

1234
builder.Services.AddDbContext<AppDbContext>((sp, options) =>    options        .UseNpgsql(builder.Configuration.GetConnectionString("Default"))        .AddInterceptors(new OutboxInterceptor()));

Now your application code is delightfully boring:

12345678910
public async Task<Guid> PlaceOrderAsync(PlaceOrderCommand cmd, CancellationToken ct){    var order = Order.Create(cmd.CustomerId, cmd.Items);    _db.Orders.Add(order);     // Saves the order AND the OrderPlaced outbox message in ONE transaction.    await _db.SaveChangesAsync(ct);     return order.Id;}

No publish call. No try/catch around the broker. If SaveChangesAsync throws, the order and the event are gone together. If it succeeds, both are durable.

Step 3 - The Outbox Publisher (BackgroundService)

This is the worker that drains the outbox into the broker. Use a hosted background service and keep it small.

12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061626364656667
public class OutboxPublisher(    IServiceScopeFactory scopeFactory,    IPublishEndpoint bus,                 // or IBus, IConnection, whatever    ILogger<OutboxPublisher> logger)    : BackgroundService{    private static readonly TimeSpan Delay = TimeSpan.FromSeconds(2);    private const int BatchSize = 50;     protected override async Task ExecuteAsync(CancellationToken ct)    {        while (!ct.IsCancellationRequested)        {            try            {                await ProcessBatchAsync(ct);            }            catch (Exception ex)            {                logger.LogError(ex, "Outbox publisher loop failed");            }             await Task.Delay(Delay, ct);        }    }     private async Task ProcessBatchAsync(CancellationToken ct)    {        using var scope = scopeFactory.CreateScope();        var db = scope.ServiceProvider.GetRequiredService<AppDbContext>();         // FOR UPDATE SKIP LOCKED prevents two replicas from picking the same row.        var messages = await db.OutboxMessages            .FromSqlRaw("""                SELECT * FROM outbox_messages                WHERE processed_on_utc IS NULL                ORDER BY occurred_on_utc                LIMIT {0}                FOR UPDATE SKIP LOCKED                """, BatchSize)            .ToListAsync(ct);         if (messages.Count == 0) return;         foreach (var message in messages)        {            try            {                var type = Type.GetType(message.Type)!;                var payload = JsonSerializer.Deserialize(message.Content, type)!;                 await bus.Publish(payload, ct);                 message.ProcessedOnUtc = DateTime.UtcNow;                message.Error = null;            }            catch (Exception ex)            {                message.RetryCount++;                message.Error = ex.ToString();                logger.LogWarning(ex, "Failed to publish outbox message {Id}", message.Id);            }        }         await db.SaveChangesAsync(ct);    }}

Two non-obvious details earn their keep here:

• FOR UPDATE SKIP LOCKED
  • PostgreSQL row-level locking lets you scale the publisher horizontally. Two replicas will simply pick disjoint rows. SQL Server has READPAST for the same effect.
• Per-message try/catch
  • one poison message must not block the whole batch.

Register it:

1
builder.Services.AddHostedService<OutboxPublisher>();

Step 4 - Make the consumers idempotent

The outbox guarantees at-least-once delivery. The publisher can crash after the broker accepts a message but before the row is marked as processed. On restart, the same message is sent again.

So every consumer must be safe to run twice with the same input. The cheapest way is a processed_messages table on the consumer side:

12345678910
public async Task Handle(OrderPlaced evt, CancellationToken ct){    if (await _db.ProcessedMessages.AnyAsync(p => p.Id == evt.MessageId, ct))        return; // already handled     await DoTheWorkAsync(evt, ct);     _db.ProcessedMessages.Add(new ProcessedMessage { Id = evt.MessageId });    await _db.SaveChangesAsync(ct);}

Combined with the outbox on the producer side, this gives you effectively exactly-once processing across the whole system - the holy grail of distributed messaging without a single distributed transaction.

Common pitfalls

A few things I see go wrong in real codebases:

• No index on ProcessedOnUtc
  • the table grows, the publisher slows down, latency spikes. Always index it.
• Polling too aggressively
  • every 100ms feels fast in dev and burns CPU in production. 1-3 seconds is plenty for most workloads.
• No archival strategy
  • processed rows pile up. Move them to a outbox_archive table or hard-delete after N days.
• Coupling the outbox table to the broker schema
  • keep the message format generic (type + JSON), not RabbitMQ-specific, so you can swap brokers later.
• Forgetting transactions on the publisher side
  • if you mark the row processed in a separate transaction from the publish, you'll re-publish on every restart. The SaveChangesAsync at the end of the batch covers you.

When NOT to use the Outbox Pattern

It's not free. You add a table, an indexed scan loop, and a few seconds of latency between a write and the published event. Skip it when:

• You don't actually need durability - e.g. ephemeral notifications.
• Your broker is your database (Kafka with transactional outbox into Kafka itself, or event sourcing).
• You can use a CDC tool like Debezium that streams from the WAL directly - the outbox table is still the source, but you skip the polling worker.

For 90% of microservice and modular monolith systems with a relational database and a message broker, the outbox is the right default.

Wrapping up

The Outbox Pattern is one of those rare techniques that costs almost nothing and removes an entire category of production incidents. It turns the dual-write problem into a single-write problem, and a single-write problem is just a SaveChangesAsync.

If you're publishing domain events from any .NET service that has a relational database, you should not be using bus.Publish() directly inside your command handlers. You should be writing an OutboxMessage and letting a worker do the rest.

Start with the EF Core interceptor, add the background publisher, make consumers idempotent. Three small pieces, one big improvement in reliability.

For related patterns, see SAGA Implementation in C#, Saga Orchestration Pattern, and EF Core Interceptors in .NET.

Frequently Asked Questions

What is the Outbox Pattern in .NET?

The Outbox Pattern is a messaging reliability pattern where outgoing messages are stored in a database table (the outbox) inside the same transaction that saves your business data. A separate background worker reads that table and publishes the messages to a message broker like RabbitMQ, Kafka, or Azure Service Bus. This guarantees that a message is never lost, never published without its corresponding state change, and can always be retried after a crash.

What problem does the Outbox Pattern solve?

It solves the dual-write problem: you cannot atomically write to a database and publish to a broker without distributed transactions. Without an outbox, a network blip between the two writes can either lose the event or commit a phantom event. The outbox reduces both writes to one local ACID transaction, eliminating the failure window entirely.

Outbox Pattern vs MassTransit transactional outbox - which one should I use?

If you already use MassTransit or NServiceBus, use their built-in transactional outbox - it's well-tested and integrated with their saga and retry pipelines. Roll your own (like the example above) when you want zero framework dependencies, full control over the schema, or you're already using a lightweight publishing setup with EF Core and a single broker.

Does the Outbox Pattern give exactly-once delivery?

Strictly, no - the broker layer always allows at-least-once. But combined with idempotent consumers (a processed_messages table or a unique constraint on the side effect), you get effectively exactly-once processing across the system, without distributed transactions. That's as good as it gets in distributed systems.

How often should the outbox publisher poll?

Between 1 and 5 seconds is the sweet spot for most workloads. Faster polling reduces latency but increases DB load. If you need sub-second latency, use change data capture (e.g. Debezium) or PostgreSQL LISTEN/NOTIFY to trigger the publisher on insert instead of polling.

That's all from me for today.

dream BIG!
