Discriminator Column in EF Core: A Quick Guide

The Background

What is a Discriminator in Entity Framework? In Entity Framework (EF) Core, a discriminator is a special column used in Table Per Hierarchy (TPH) inheritance to differentiate between multiple entity types stored in a single table. How Discriminators Work? When using inheritance in EF Core, all derived types are mapped to the same database table. To distinguish between different entity types, EF Core automatically adds a discriminator column in the table. The discriminator column stores a string or an integer value representing the type of entity. Let's see it through example.

Discriminator in EF Core – Table Per Hierarchy (TPH)

Example: Single Table Inheritance

Imagine you have a Base Class Vehicle and two derived classes: Car and Bike.

Step 1: Define the Entities

123456789101112131415
public class Vehicle{    public int Id { get; set; }    public string Model { get; set; } = string.Empty;} public class Car : Vehicle{    public int NumberOfDoors { get; set; }} public class Bike : Vehicle{    public bool HasGear { get; set; }}

Step 2: Configure EF Core in DbContext EF Core automatically adds a Discriminator column when you use TPH inheritance.

1234567891011
public class AppDbContext : DbContext{    public DbSet<Vehicle> Vehicles { get; set; }    public DbSet<Car> Cars { get; set; }    public DbSet<Bike> Bikes { get; set; }     protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)    {        optionsBuilder.UseSqlServer("your_connection_string");    }}

Step 3: Migration and Database Table Run the following commands:

12
dotnet ef migrations add InitialCreatedotnet ef database update

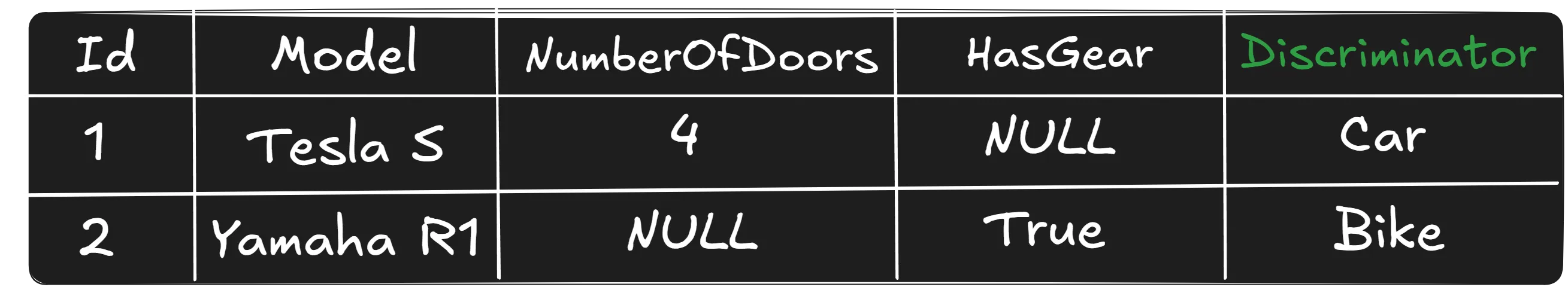

Generated Table (Single Table for All Entities)

Discriminator: Determines if the row is for Car or Bike. NULL values exist for columns that are not applicable to that entity.

Customizing the Discriminator in EF Core

By default, EF Core names the column Discriminator. However, you can customize its name and values. Example: Custom Discriminator Name and Values Modify OnModelCreating in AppDbContext:

1234567
protected override void OnModelCreating(ModelBuilder modelBuilder){    modelBuilder.Entity<Vehicle>()        .HasDiscriminator<string>("VehicleType")        .HasValue<Car>("CarType")        .HasValue<Bike>("BikeType");}

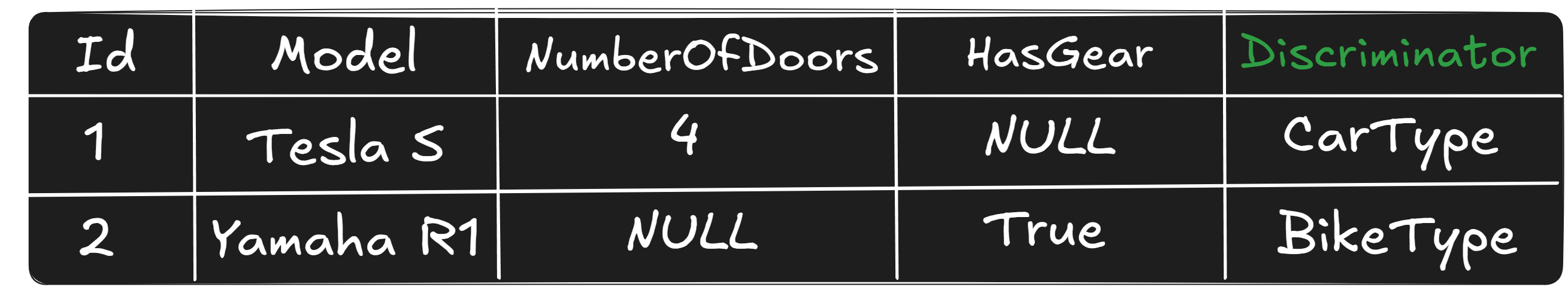

Effect on Database Table

Querying Entities with Discriminator

EF Core automatically filters data based on the discriminator. Query All Vehicles

1
var vehicles = context.Vehicles.ToList();

Returns all records (both Cars and Bikes).

Query Only Cars

1
var cars = context.Cars.ToList();

EF Core translates this into:

1
SELECT * FROM Vehicles WHERE VehicleType = 'CarType';

Query Only Bikes

1
var bikes = context.Bikes.ToList();

EF Core translates this into:

1
SELECT * FROM Vehicles WHERE VehicleType = 'BikeType';

Changing the Discriminator at Runtime

Sometimes, you may want to change the discriminator dynamically. Example: Convert a Bike to a Car

1234567891011121314
var bike = context.Bikes.FirstOrDefault(b => b.Id == 2);if (bike != null){    var car = new Car    {        Id = bike.Id, // Keep the same ID        Model = bike.Model,        NumberOfDoors = 4    };     context.Bikes.Remove(bike);    context.Cars.Add(car);    context.SaveChanges();}

The discriminator column value changes from 'BikeType' to 'CarType'.

Using Enum as Discriminator

EF Core 8 and 9 support enums as discriminator values. Step 1: Define an Enum

123456
public enum VehicleType{    Unknown = 0,    Car = 1,    Bike = 2}

Step 2: Apply Discriminator with Enum

1234567
protected override void OnModelCreating(ModelBuilder modelBuilder){    modelBuilder.Entity<Vehicle>()        .HasDiscriminator<VehicleType>("VehicleType")        .HasValue<Car>(VehicleType.Car)        .HasValue<Bike>(VehicleType.Bike);}

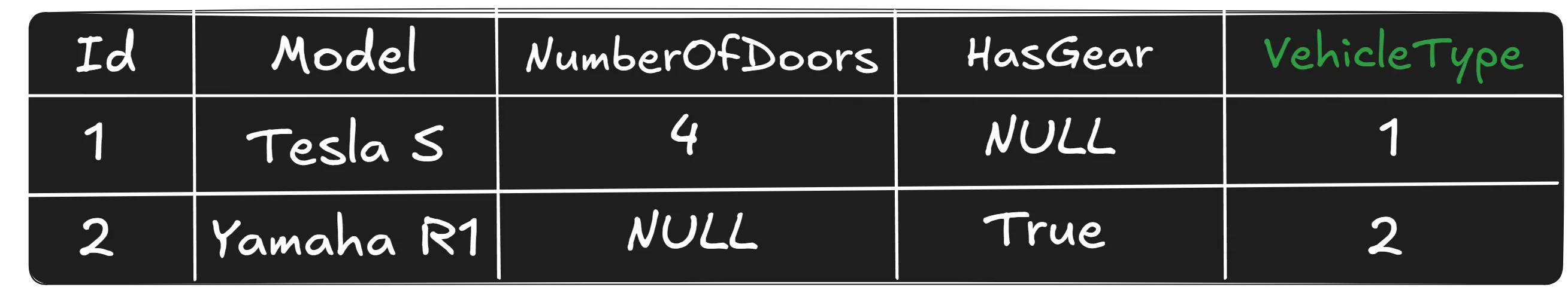

Effect on Database Table:

Performance Considerations of Discriminators

Advantages of TPH (Discriminator-Based) Inheritance:

1. Faster queries (single table, no joins).
2. Easier schema management (no multiple tables). Disadvantages of TPH:
3. Sparse columns (many NULL values in the table).
4. Potential table bloat (storing different types of data in a single table). Alternative: Table Per Type (TPT) Instead of using a discriminator, you can use TPT where each entity has its own table. csharp modelBuilder.Entity<Car>().ToTable("Cars"); modelBuilder.Entity<Bike>().ToTable("Bikes");

Wrapping Up

EF Core Discriminators enable Table Per Hierarchy (TPH) inheritance.

The discriminator column is used to differentiate entity types within a single table.

You can customize the discriminator name and values. EF Core 8 & 9 allow enum-based discriminators.

Performance considerations should guide whether to use TPH (with discriminators) or TPT..
